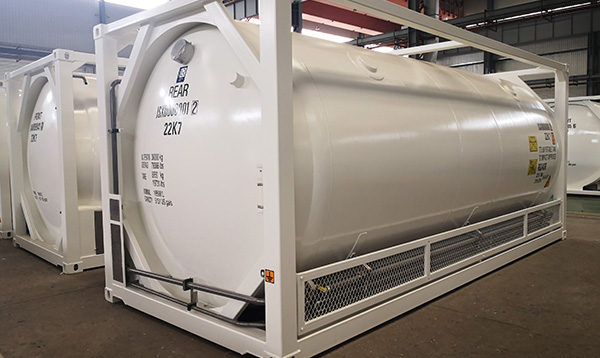

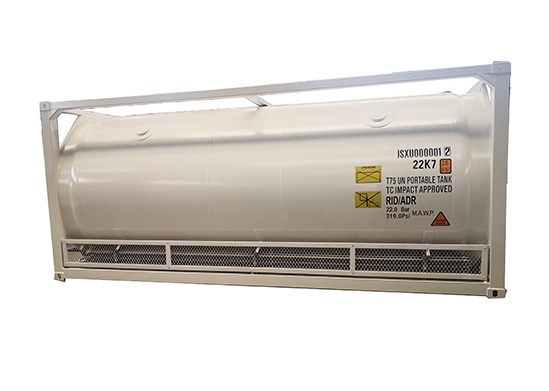

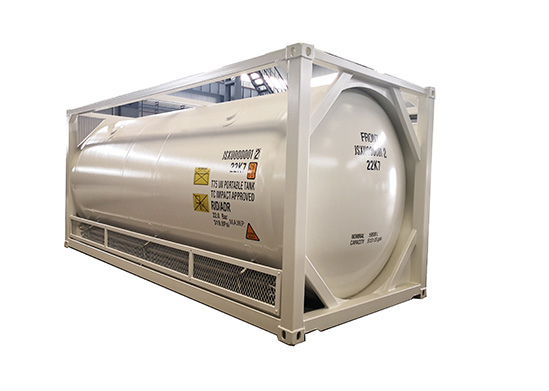

ASME ISO T75 Tank Container Liquid Gas Container 20ft
T75 is a type of gas tank container, It is a low temperature tank, and the transport medium includes various liquefied gases, such as liquid oxygen, liquid nitrogen, etc.
It is composed of stainless steel inner tank, high vacuum multi-layer insulation and outer skin. Comes with LR certification. Tank containers have the important advantages of being economical, fast and safe.
ASME ISO T75 Tank Container Liquid Gas Container 20ft
T75 is a type of gas tank container, It is a low temperature tank, and the transport medium includes various liquefied gases, such as liquid oxygen, liquid nitrogen, etc. It is composed of stainless steel inner tank, high vacuum multi-layer insulation and outer skin. Comes with LR certification. Tank containers have the important advantages of being economical, fast and safe.
| Quotation Sheet | |||
| To:Dear friend | NO.: LSX20220302JSXT DATE: 2022-03-02 |
||
| Description of goods | Q'ty/Unit | Unit Price/ShangHai/FOB/CIF Dar es salaam | Total Amount |
| 20FT T75Tank Container | 1 | FOB: 53500 USD | 53500 USD |
| 20FT T75 Tank Container | 1 | CIF：58000USD | 58000USD |
| 20FT T75 Tank Container | |||
| Items | Parameter | ||
| UN tank instruction | T75 | ||
| TARE（kg) | 9200 | ||
| MPGM（kg) | 36000 | ||
| Stacking Load（kg) | 192000 | ||
| Contents | UN1073 | LOX | |
| UN1977 | LIN | ||
| UN1951 | LAR | ||
| UN2187 | LCO₂ | ||
| UN2201 | LN₂O | ||
| Type of insulation | High vacuum multi -layer | ||
| MAX .Filling rate | 0.95 | ||
| Design temperature MAX./MIN(℃) | -196/+50 | ||
| Material of frame | Q355D(GB/T1591) | ||
| Outer size (L×W×H) | 6058×2438×2591 | ||
| Full capacity（±1%) (m³) | 21 | ||
| M.A.W.P（MPa) | 2.20/－0.02 | ||
