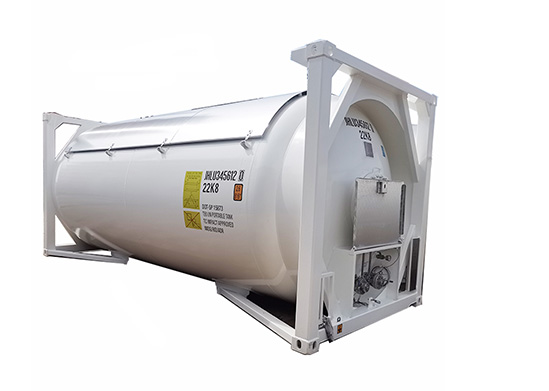

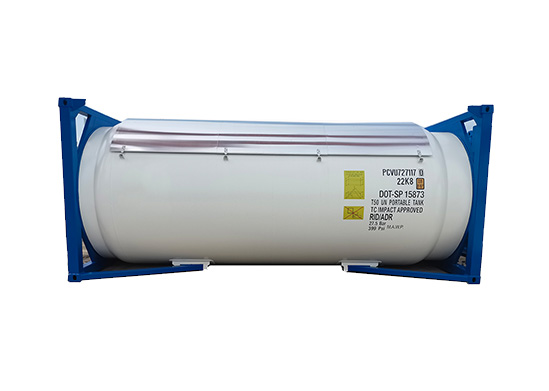

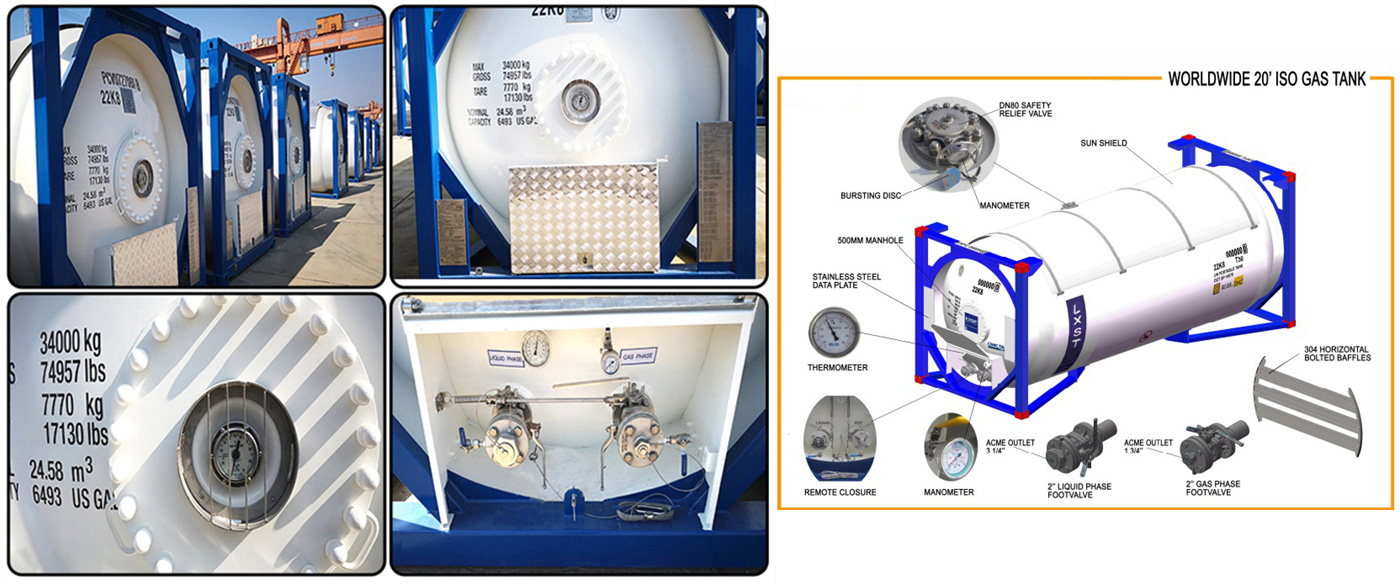

T50 tank container is a medium grade classification, a kind of standardized ISO tank box which can integrate sea, railway, land and air transportation. The LPG tank developed by our company is one of the T50 tanks, with an internal volume of 22.5 cubic metres in a 20ft lpg tank, capable of carrying 9 tons of LPG.
T50 tank container is a medium grade classification, a kind of standardized ISO tank box which can integrate sea, railway, land and air transportation. The LPG tank developed by our company is one of the T50 tanks, with an internal volume of 22.5 cubic metres in a 20ft lpg tank, capable of carrying 9 tons of LPG.
| Quotation Sheet | |||
| To:Mr. Nadeem Tahir | NO.: LSX20220201JSXT DATE: 2023-02-01 |
||
| Description of goods | Q'ty/Unit | Unit Price/ShangHai/FOB | Total Amount |
| 20FT T50 Tank Container | 1 | FOB : 27500USD | 27500 USD |
| 20FT T50 Tank Container（uncertified） | 1 | FOB :24000USD | 24000USD |
| 20FT T50 LPG Tank Container | |||
| Items | Parameter | ||
| DESIGN REGUL ATIONS | T50 UN PORTABLE TANK (MDG, 49 CFR, RID/ADR) IS0 1496-3,TIR, uIC, cSC, TC,FRA | ||
| PRE SSURE VE SSEL CODE | USDOT | ASME BPVCI2.Class 1-2017Ed+CASE 2624 U2- stamp, USDOT- SP15873, | |
| IMDG /RID/ADR | ASME BVIV.2.Class 2-2017Ed | ||
| DESIGN REFERENCE TEMPERATURE | USDOT | 46.1℃ | |
| IMDG /RID/ADR | 55℃ | ||
| MAWP | USDOT | 1.64/-0.103 MPa AT 55℃ | |
| IMDG /RID/ADR | 1.8/-0.103 MPa AT 55℃ | ||
| DESIGN TEMPERATURE | - 40/+55℃ | ||
| M.D.M. T | -40℃ | ||
| HYDROST ATIC TEST PRESSURE | 2.41 MPa AT 4~48℃ | ||
| P.R.V SETTING | 1.8 MPa | ||
| CORROSION ALLOWANCE | 1 mm | ||
| NOMINAL THICKNESS OF SHELL | 12.5 mm | ||
| THICKNESS OF HEAD | 12.5(min11.2) mm | ||
| HEAT TREATMENT | Postweld heat treatment | ||
| JOINT EFFICINCY (SHEL/HEAD) | 1.0/1.0 | ||
| LEAKAGE TEST | 0.6 MPa | ||
| CONTENTS | LPG (UN1075),etc. | ||
| DESIGN SPECIFIC GRAVITY | 0.42 kg/L (LPG) | ||
| TOTAL VOLUME (NOMINAL t1%) | 24,800 L | ||
| M.P.C.M. | 34,000 kg | ||
| ALLOWANCE STACKING MASS | 192,000 kg | ||
