The gas storage tank refers to the equipment specially used to store gas, and at the same time, it plays the role of stabilizing the system pressure. According to the pressure of the gas storage tank, it can be divided into high-pressure gas storage tank, low-pressure gas storage tank, and normal pressure gas storage tank.
The gas storage tank refers to the equipment specially used to store gas, and at the same time, it plays the role of stabilizing the system pressure. According to the pressure of the gas storage tank, it can be divided into high-pressure gas storage tank, low-pressure gas storage tank, and normal pressure gas storage tank. According to the material of the gas storage tank, it can be divided into: carbon steel gas storage tank, low alloy steel gas storage tank, stainless steel gas storage tank. Gas storage tanks (pressure vessels) are generally composed of parts and components such as cylinders, heads, flanges, nozzles, sealing elements and supports. In addition, it is also equipped with safety devices, meters and internal parts for different production processes.

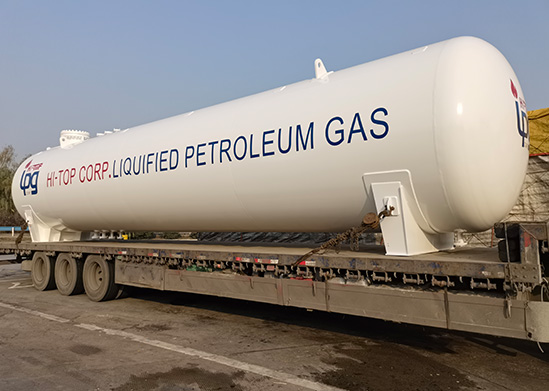

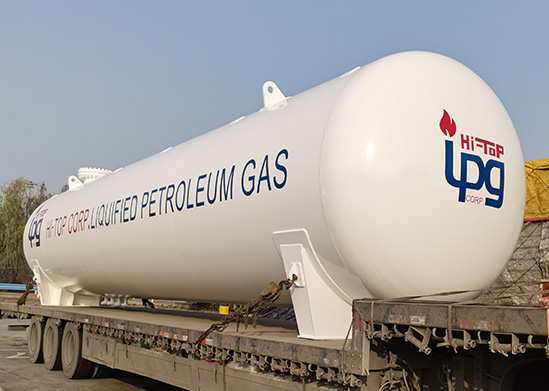

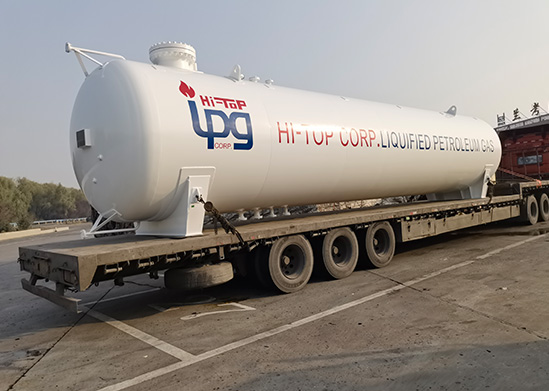

| PRODUCT NAME | LPG STORAGE TANK | ||
| BUILT FOR | |||
| ITEM NUMBER | DESIGN CODE | ASME BPVC W.1-2019 | |
| SERVICE FLUID | LPG | CORROSION ALLOWANCE | mm |
| WATER CAPACITY | 60m3 | VESSEL NET WEIGHT | 16600KG |
| OVERALL LENGTH | 13001mm | OUTSIDE DIAMETER | 2506mm |
| SHELL MATERIAL | SA-516 GR.70 | HEAD MATERIAL | SA-516 GR.70 |
| SHELL THICKNESS | 18mm | HEAD THICKNESS | 18mm |
| HEAT TREATMENT | PWHT | NDT | RT |
| TEST PRESSURE | 2.25MPa | EXTERNAL SURFACE AREA | 108.27m2 |
| CERTIFIED BY | |||
| JINGMEN HONGTU SPECIAL AIRCRAFT MANUFACTURINGCOLTD | |||
| MAWP | 1.724MPa | AT | 50℃ |
| MDMT | ‘-20℃ | AT | 0.7MPa |
| MFR.S/N | W51110 | ||
| YEAR BUILT | 2021 | ||
