The chemical tank container is composed of PE lining and carbon steel, which can hinder the corrosion of chemical substances and carbon steel
It can transport all kinds of corrosive liquid tank containers
The chemical tank container is composed of PE lining and carbon steel, which can hinder the corrosion of chemical substances and carbon steel
It can transport all kinds of corrosive liquid tank containers
Transport medium: sulfuric acid, concentrated sulfuric acid, dilute sulfuric acid, etc.
We are a tank container factory in China, if you have any needs, we can meet them
We can customize or produce various international standard tank containers

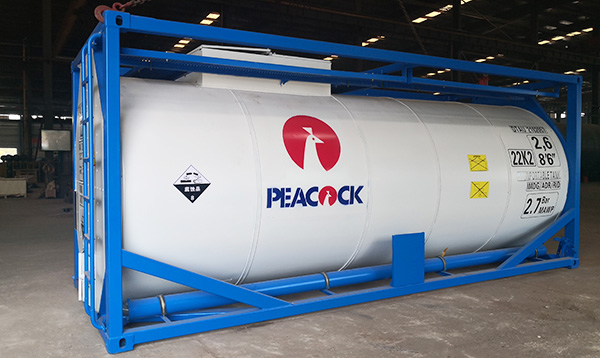

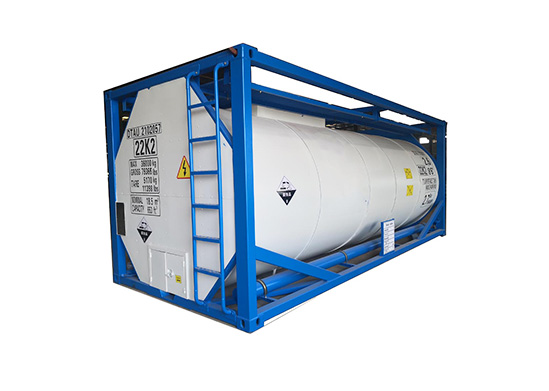

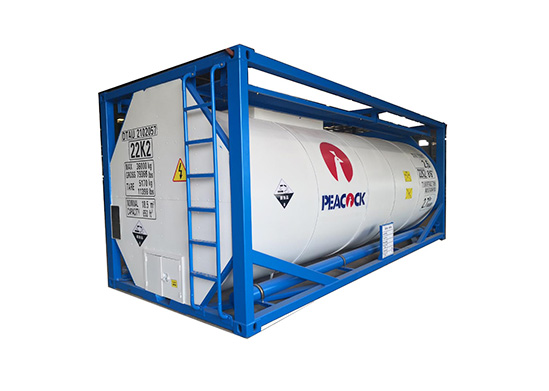

| product name | 20FT tank container With PE Lining | model | LSXC |
| Transport medium | Sulfuric Acid | Volume | 17.5 CBM |
| Dimensions (mm) | 6068*2438*2591 | Tank size (mm) | Outside: 5850*2200*2100 Inside: 5818*22168*2068 |
| Weight (kg) | 6000 | design standards | National standard |
| Production cycle | 30 | Warranty/Certificate | Have |
| Item | Specification |
| Tank material | Cartridge Q235 carbon steel /5mm |
| Beam material | Q235B |
| shape | Rectangular |
| Curb weight (kg) | 6000 |
| Head thickness | 5mm |
| Tank thickness | 5mm |
| The thickness of the lining | 16mm |
| Lining material | PE |

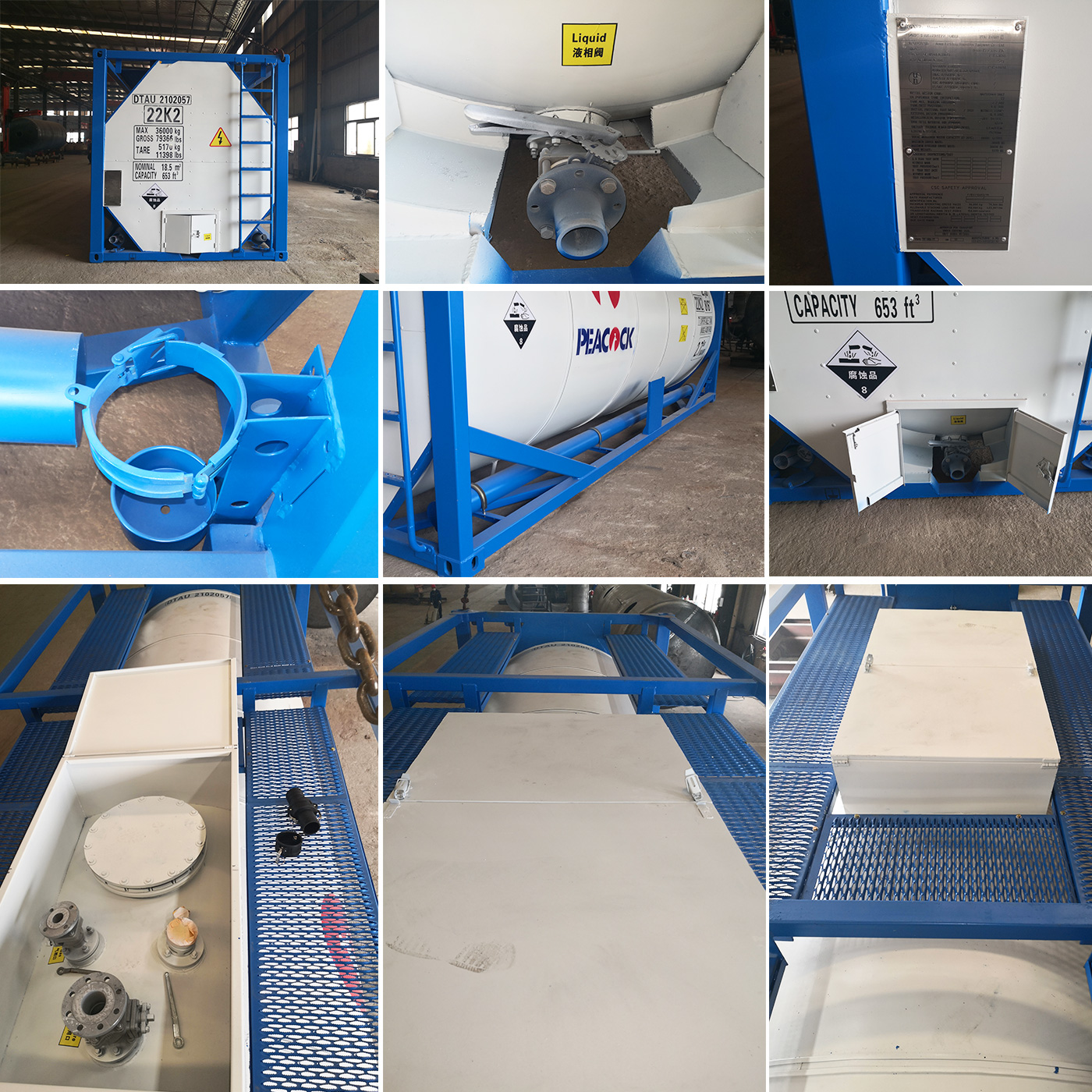

| breather valve | 2 |
| Manual butterfly valves | 1 |
| Manhole | 2 piece |
| Discharge valve | 2 piece |
| colour | According to user requirements |
| Wave breaker | 2 pieces |
