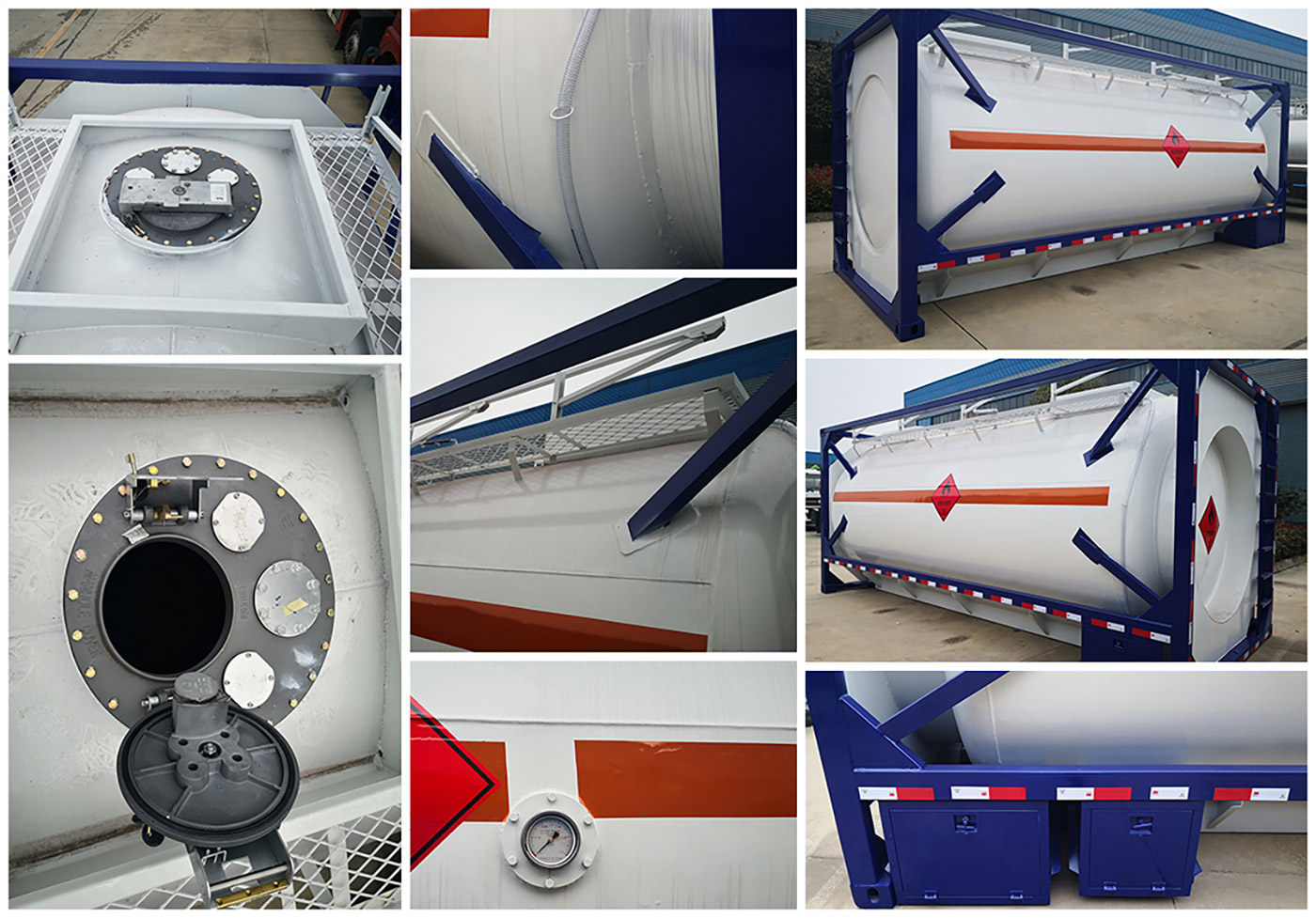

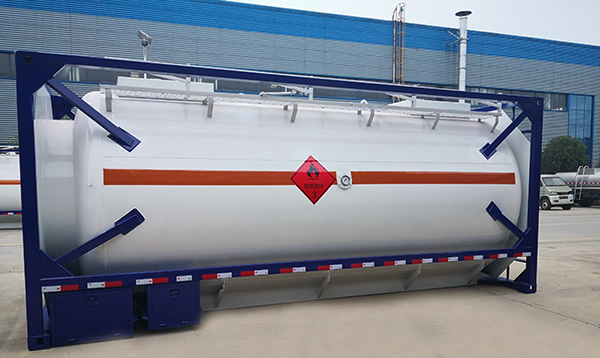

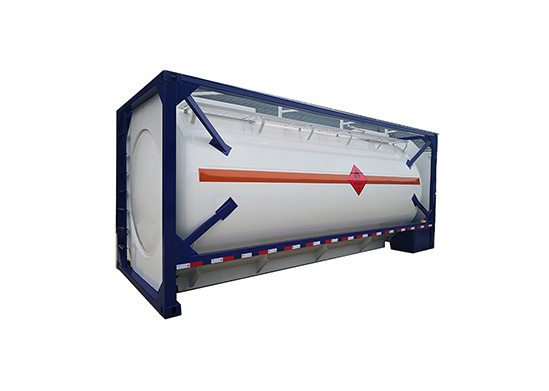

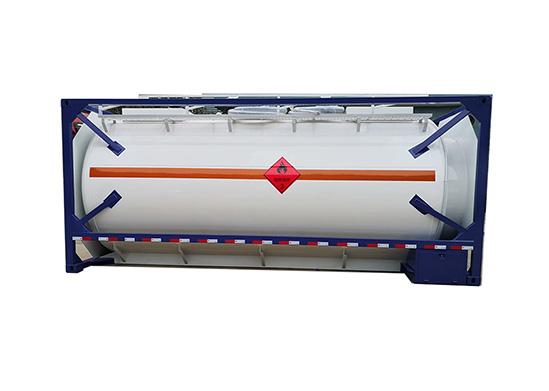

Fuel tank containers are made of carbon steel and insulation, which can effectively insulate heat and ensure the safety of flammable gases
Transportation medium: water, diesel oil, gasoline, various non-corrosive gases.
We are a tank container factory in China, if you have any needs, we can meet them
We can customize or produce various international standard tank containers
Fuel tank containers are made of carbon steel and insulation, which can effectively insulate heat and ensure the safety of flammable gases
Transportation medium: water, diesel oil, gasoline, various non-corrosive gases.
We are a tank container factory in China, if you have any needs, we can meet them
We can customize or produce various international standard tank containers
| Quotation Sheet | |||
| To:Ailsa | NO.: LSX2021623JCT DATE: 2021-6-23 |
||
| Description of goods | Q'ty/Unit | Unit Price/ShangHai//FOB | Total Amount |
| 20 ft single-layer carbon steel tank container | 1 | FOB：USD11000 | USD11000 |
| 20 ft single-layer carbon steel tank container | 1 | Ex-factory price including tax: USD10250 | USD10250 |
| 20FT T50 LPG Tank Container | |||
| Items | Parameter | ||
| Tank material | Cylinder body Q235 carbon steel/5mm, head Q235 carbon steel/5mm | ||
| Beam material | Q235B/5mm | ||
| shape | Rectangular | ||
| Curb weight (kg) | 4200 | ||
| Head thickness | 5mm | ||
| Tank thickness | 5mm | ||
| Wave breaker | Q235B/4.75mm | ||
| Wave breaker hoarding | Q235B/3.5mm | ||
| Manhole | 2 | ||
| Pedestrian walkway | Have | ||
| Discharge valve | Stainless steel DN80 one | ||
| Wave breaker | 2 pieces | ||
| Climb the ladder | 1 | ||
| Ball valve | Stainless steel DN80 one | ||
| colour | According to user requirements | ||
| product name | 20FT tank container | model | JSXT |
| Transport medium | Fuel | Volume | 26 CBM |
| Dimensions (mm) | 6068*2438*2591 | Tank size (mm) | Outside: 5850*2350*2260 Inside: 5818*2318*2218 |
| Weight (kg) | 4300 | design standards | National standard |
| Production cycle | 30 | Warranty/Certificate | Have |
| Product parameters (main configuration) | |||
| Item | Specification | Remark | |
| Tank material | Cartridge Q235 carbon steel /5mm, head Q235 carbon steel /5mm | ||
| Beam material | Q235B/5mm | ||
| Shape | Rectangular | ||
| Curb weight (kg) | 4300 | ||
| Head thickness | 5mm | ||
| Tank thickness | 5mm | ||
| Resistance wave plate | Q235B/4.75mm | ||
| Blocking board coaming | Q235B/3.5mm | ||
| breather valve | 1 / stainless steel | ||
| Test pressure | 6.0bar | ||
| Ball Valve | Stainless steel DN80 | ||
| Manhole | 2piece | ||
| Discharge valve | 2 piece/Stainless steel DN80 | ||
| Wave breaker | 2 pieces | ||
| colour | According to user requirements | ||
| other | Simple ladder, fire extinguisher, etc. | ||
| Surface treatment | Acrylic acid and alkali resistant paint, the total thickness of the paint is 150um, the color can be specified | ||
| Third party inspection | BV (France) | ||
| product name | 21FT tank container | model | JSXT |
| Transport medium | Fuel | Volume | 27 CBM |
| Dimensions (mm) | 6068*2438*2592 | Tank size (mm) | Outside: 5850*2350*2260 Inside: 5818*2318*2219 |
| Weight (kg) | -4240 | design standards | National standard |
| Production cycle | -8510 | Warranty/Certificate | Have |
| Product parameters (main configuration) | |||
| Item | Specification | Remark | |
| Tank material | Cartridge Q235 carbon steel /5mm, head Q235 carbon steel /6mm | ||
| Beam material | Q235B/6mm | ||
| Shape | Rectangular | ||
| Curb weight (kg) | 4301 | ||
| Head thickness | 5mm | ||
| Tank thickness | 5mm | ||
| Resistance wave plate | Q235B/4.75mm | ||
| Blocking board coaming | Q235B/3.5mm | ||
| breather valve | 2 / stainless steel | ||
| Test pressure | 6.1bar | ||
| Ball Valve | Stainless steel DN81 | ||
| Manhole | 3piece | ||
| Discharge valve | 3 piece/Stainless steel DN80 | ||
| Wave breaker | 3 pieces | ||
| colour | According to user requirements | ||
| other | Simple ladder, fire extinguisher, etc. | ||
| Surface treatment | Acrylic acid and alkali resistant paint, the total thickness of the paint is 151um, the color can be specified | ||
| Third party inspection | BV (France) | ||
